The LMK3-S-BS, the latest Linear Motion Kit from Cobotracks, transforms the UR3 cobot into a versatile 7th-axis solution, extending its range by up to 50 metres for unmatched flexibility and precision. As the smallest cobot in the Universal Robots family the UR3 features a lightweight design (11 kg), a 3 kg load capacity, 360-degree rotation on all wrist joints, and infinite rotation on the end joint, this small, yet powerful table-top cobot is ideal for light assembly and high-precision tasks.
Cobotracks guarantees a simple plug & play solution thanks to the unique UR software, ensuring seamless integration and improved productivity.

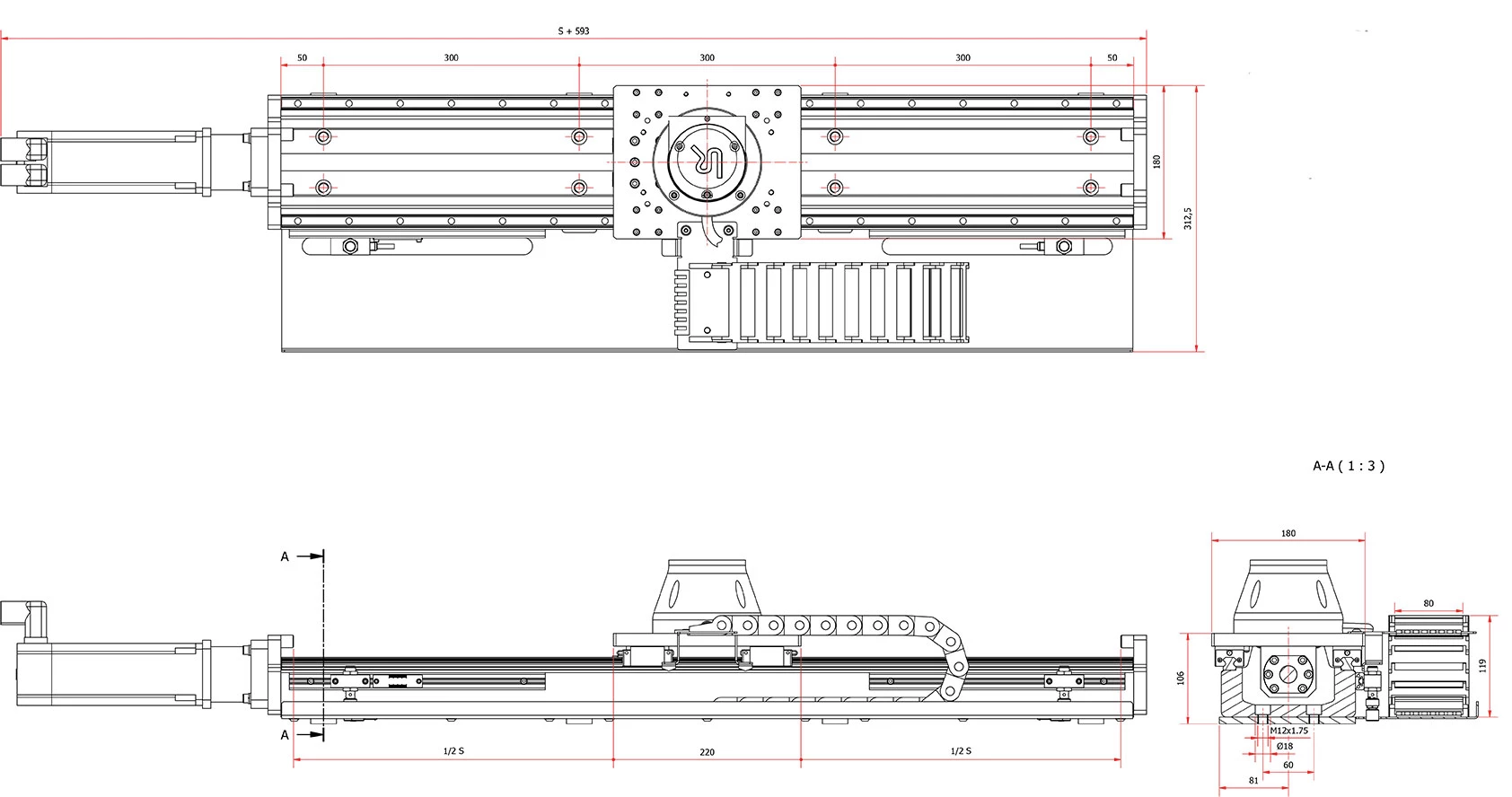

Learn more about LMK3-S-BS.
ROBOTTYPE |
UR3/UR3e |
MAX. STROKE [mm] |
2500 |
MAX. SPEED [mm/sec] |
250 |
DUTY CYCLE [mm] |
100 |
REPEATABILITY [mm] |
0.05 |
AMBIENT TEMPERATURE [°C] |
-10 °C to 60°C |
ELECTRICAL INPUT |
380 V |
BASE WEIGHT |
20 kg |
WEIGHT PER 100mm STROKE |
4.1 kg |
