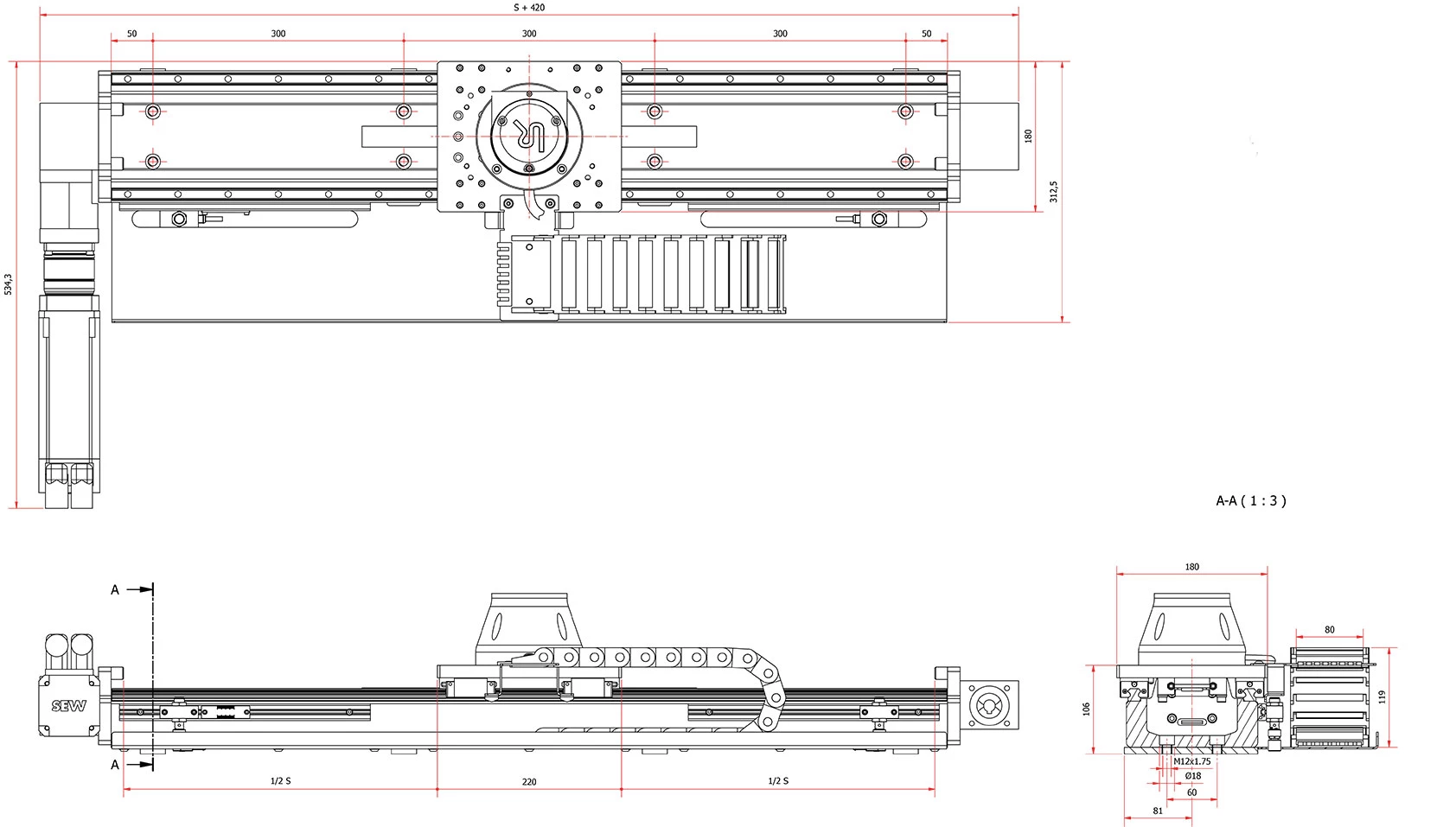

LMK3-S-B Linear Motion Kit for Universal Robots UR3

The LMK3-S-B, the latest Linear Motion Kit from Cobotracks, enhances the UR3 cobot by transforming it into a versatile 7th-axis solution, extending its range up to 50 metres. As the smallest cobot in the Universal Robots family, the UR3 features a lightweight design (11 kg), a 3 kg load capacity, 360-degree rotation on all wrist joints, and infinite rotation on the end joint. These capabilities make it perfect for light assembly, high-precision tasks, and compact automation environments, improving efficiency and workflow optimization.

The LMK3-S-B from Cobotracks is a simple plug-and-play solution, seamlessly integrating with the unique UR software to ensure smooth operation and enhanced productivity.

Learn more about LMK3-S-B.

ROBOTTYPE
UR3/UR3e
MAX. STROKE [mm]
7000
MAX. SPEED [mm/sec]
250
DUTY CYCLE [mm]
100
REPEATABILITY [mm]
0.1
AMBIENT TEMPERATURE [°C]
-10 °C to 60°C
ELECTRICAL INPUT
380 V
BASE WEIGHT
21 kg
WEIGHT PER 100mm STROKE
4 kg
