The Universal Robots UR16e delivers an impressive 16 kg (36.3 lbs) of load capacity within a small footprint and is ideal for use in heavy machine loading, material handling and screw and nut drive applications. This powerful robot can handle heavier tooling at the end of its arm, as well as multi-part handling; it is especially useful for achieving shorter cycle times.

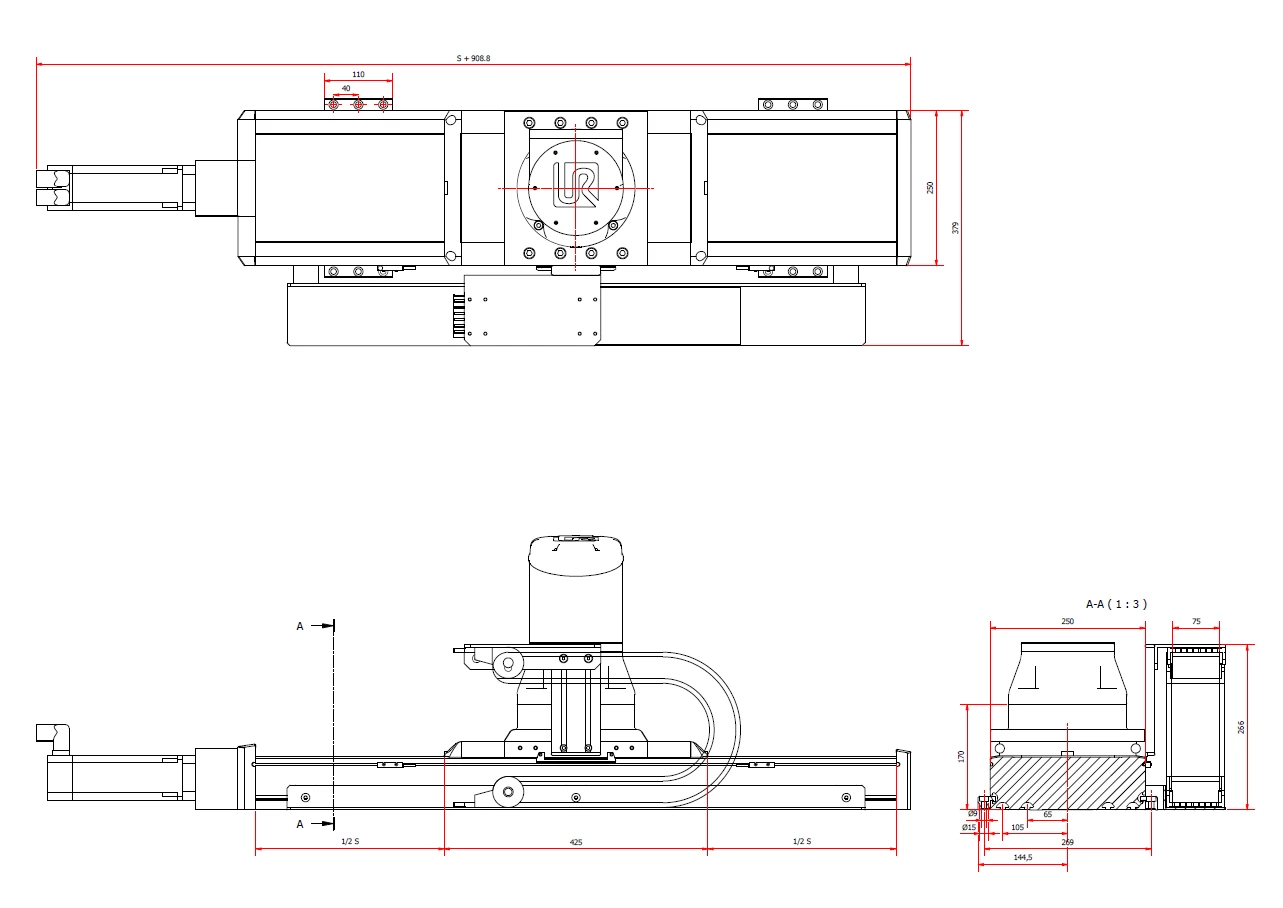

Our “Linear Motion Kit” or “LMK16-ALU-BS” is the newest linear track that extends the range of the UR16e cobot by up to a maximum of 50 metres. Cobotracks guarantees a simple plug & play solution thanks to their unique UR software.
Learn more about LMK16-ALU-BS.
ROBOTTYPE |
UR16e |
MAX STROKE [mm] |
2.500 |
MAX. SPEED [mm/sec] |
250 |
DUTY CYCLE [mm] |
100 |
REPEATABILITY [mm] |
0.05 |
AMBIENT TEMPERATURE [°C] |
-10 °C to 60°C |
ELECTRICAL INPUT |
380 V |
BASE WEIGHT |
34.5 kg |
WEIGHT PER 100mm STROKE |
2.8 kg |
